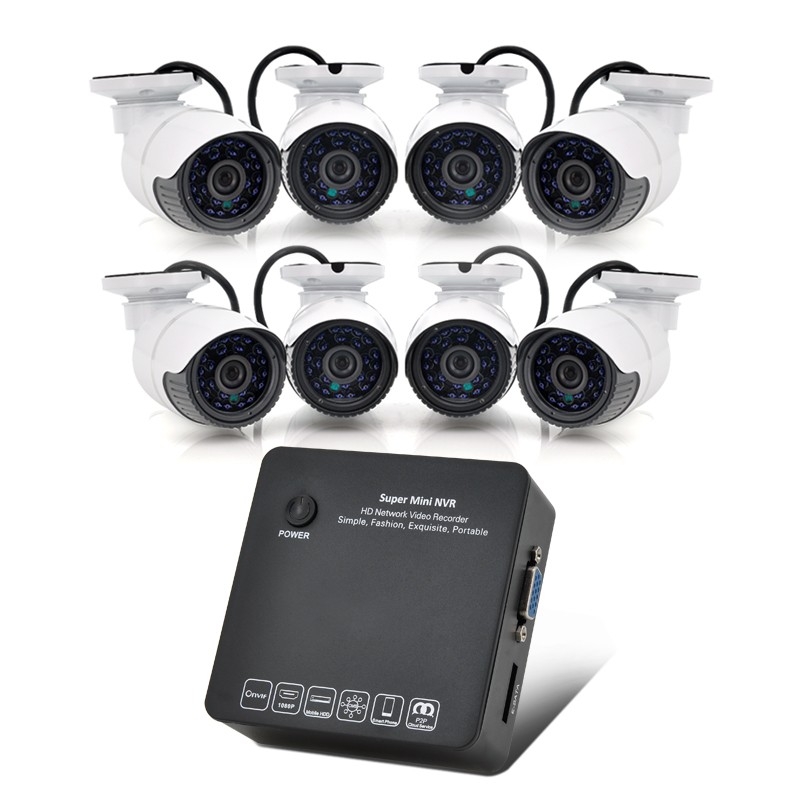

8 Channel HD Network Video Recorder System
Dimensions :
NVR Dimensions: 94x89x30mm (L x W x D)
Camera Diemensions: 154x68x66mm (L x W x D)

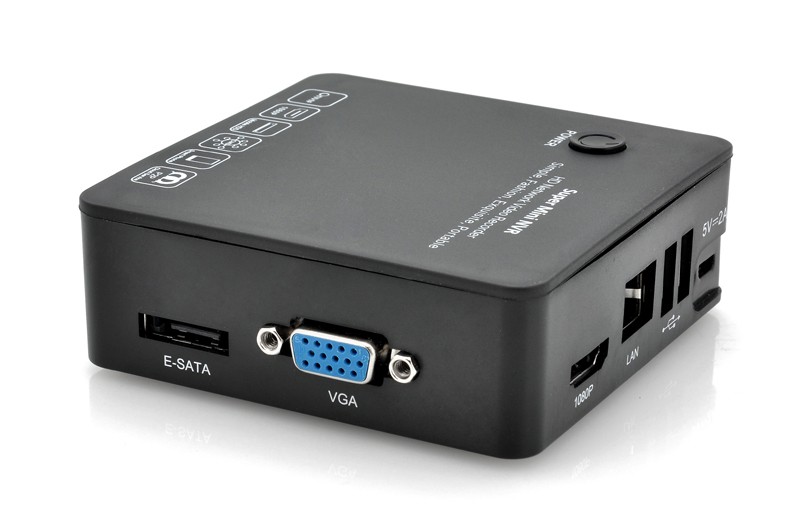

NVR
Operating System: Embedded LINUX Operating System
Dual Stream
Display Resolution: 1920x1080 / 1440x900 / 1366x768 / 1280x1024 / 1024x768 / 800x600
Monitoring Image Quality:1080p (1920×1080), 960p (1280×960), 720p (1280×720)
Recording Playback Quality: 8 Channel 720p/960p Model: 4 Channel Simultaneously Playback / 8 Channel 1080p Model: 1 Channel 1080p Playback
Backup Way: Support U Disk, USB Mobile HDD, USB DVD-RW, Network Storage + Backup
Operation Way: Mouse
Local Login: User name and Password
Recording Storage: Local HDD, Network
Video Input: 8x 720p IP Camera
Audio Input: 8/1 Channel audio input
Video Output: 1 Channel VGA +1 Channel HDMI
Network Port: 1 RJ45,10M/100M Self-adaptive LAN Port
USB Port:2 USB 2.0 Ports, E-SATA Port
Wireless Port: 3G，Wi-Fi
HDD: Mobile HDD/ E-SATA/ U Disk
Mobile Surveillance: Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) Smart Phone
Supported Protocol: ONVIF
Power Consumption: < 10W（Without HDD）
Working Temperature:-10 to 55 Degree Celsius
Working Humidity: 10％ to 90％

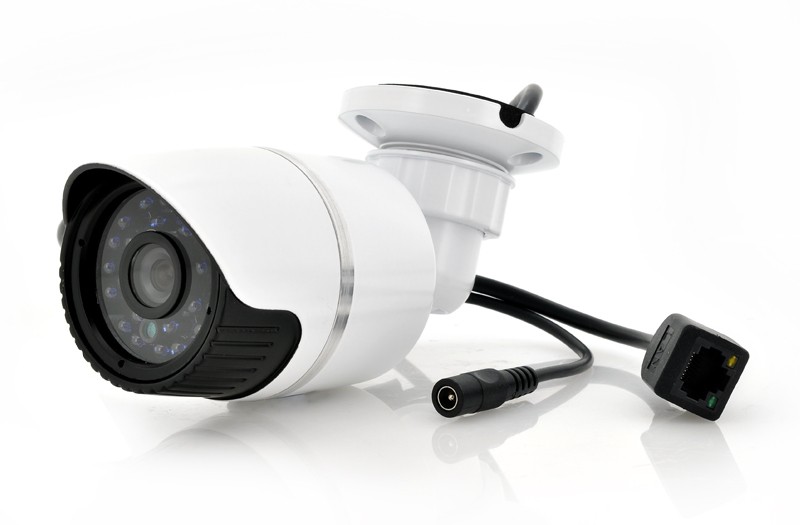

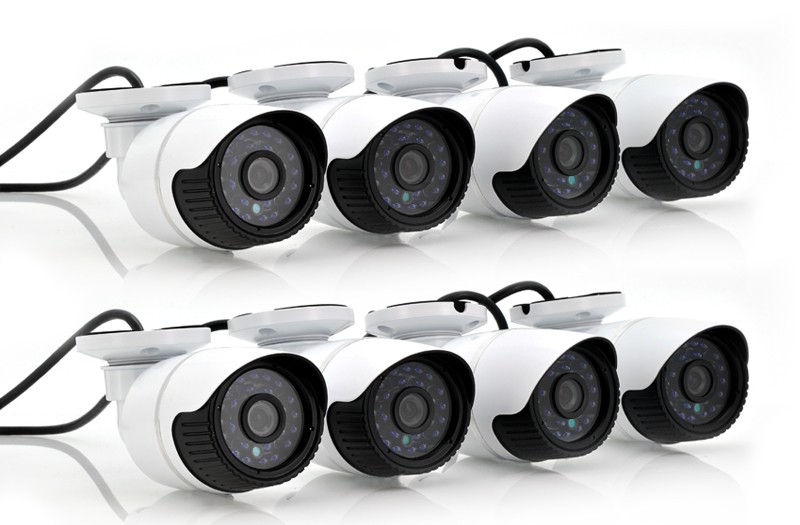

Camera
High Resolution 1/3 Megapixel CMOS Sensor
Integrated 3.6mm Megapixel lens
60 Degree Angle
Day and night Application Makes 30 Meter IR View
H.264 Compression
Real time transmission up to 25FPS(1280x720p - 25FPS)
Hardware Motion Detection Supported
DC: 12V/1A
ONVIF 2.0 Compliant
Ethernet: RJ-45 Interface 10/100Mbps
Supported Protocol: HTTP, FTP,TCP/IP, UDP, SMTP, DHCP, PPPOE, DDNS, UPnP, ONVIF
Mobile Phone Browser
Internet Browser: Firefox 4, Google Chrome and IE 6.0
Supported OS: Windows XP/Windows7
