Description
Details

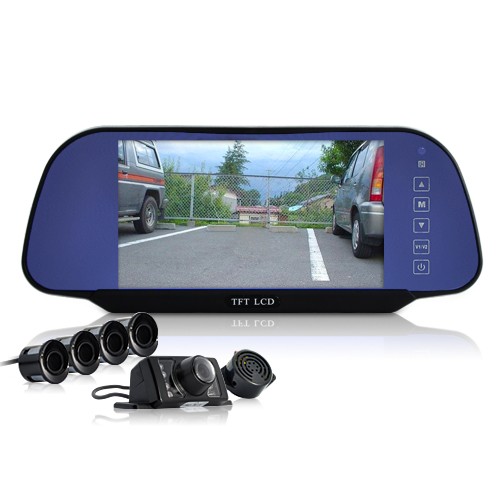

Car Reversing Set - Rearview Camera, 4 Parking Sensors, Rearview Mirror
Dimensions : Product size: 250x105x25mm (L x W x D)
Cable Length: 6 Meter
Sensor Cable: 2.5M
This Car Reversing Set has it all to help you reverse in narrow alleys, underground parking lots and other difficult areas with maximum safety.
4 ultra sensitive parking sensors

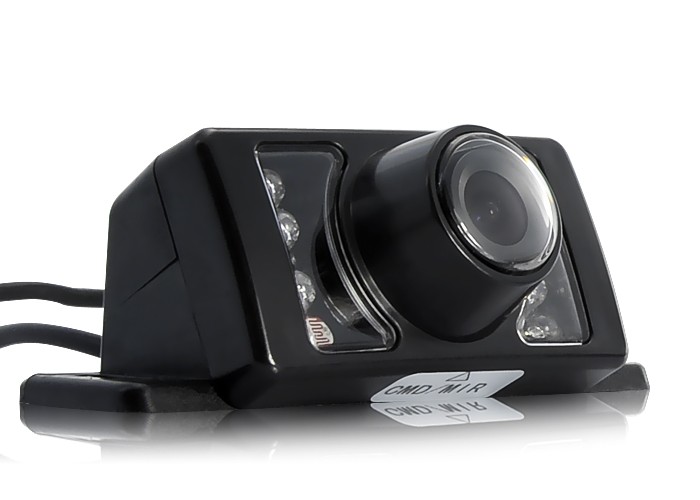

Weatherproof high quality backup camera with night vision

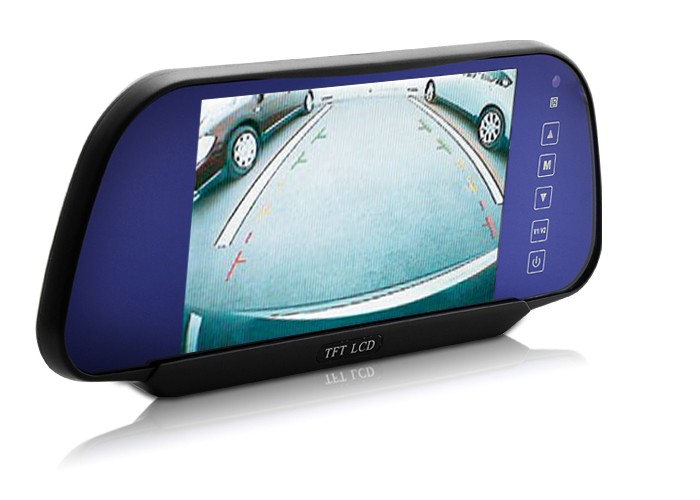

7 inch TFT LCD as rearview mirror
Beep warnings, distance display in real time, auto switch while reversing
Easy, convenient and safe reversing and parking!
No more money wasted on repairs!
General Specifications
- Video System: NTSC/PAL (Auto Switch)
- Aspect Ratio: 4:3, 16:9
- Video Output Level: 1 Vp-p 75 ohm
- Frequency: 50Hz (PAL), 60Hz (NTSC)

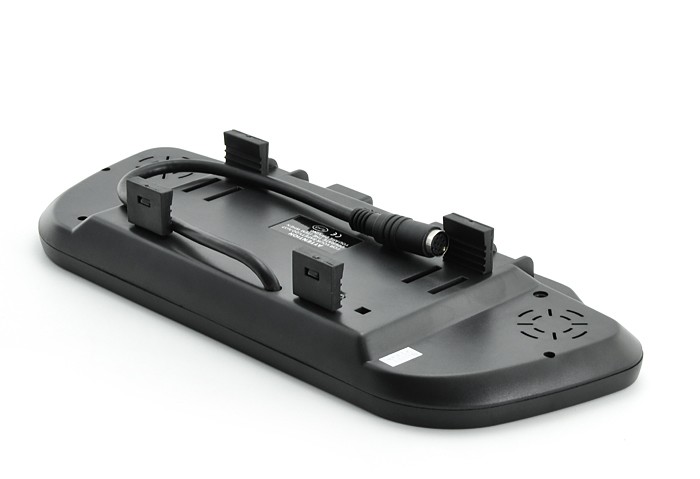

- Rearview Mirror Pinch Clip: Adjustable- 60mm to 90mm
- Waterproof
- Camera Range: 5 Meters
- Operation Temperature: -10 to 50 Degree Celsius
- Power Source: DC 12V
Display
- Display Size: 7 Inch TFT LCD
- Display Resolution: 800x480
- Non Touchscreen
Lens
- Image Sensor: 1/4 Inch Color CMOS Sensor
- Resolution: 420TVL
- Scan Area: 5.18x4.19mm (PAL), 4.69x3.45mm (NTSC)
- Viewing Angle: 75 Degrees
Night Vision
- Min LUX: 0.0
Parking Sensor
- Detect and Display Distance: 0.4 to 2M
- Alarm: 1.3-2.0 M - Mute; 1.2, 0.9, 0.7M - Beep Warning; <0.5< - Continual Beep Warning
- Distance Display: CM
- Distance Alert: Beep

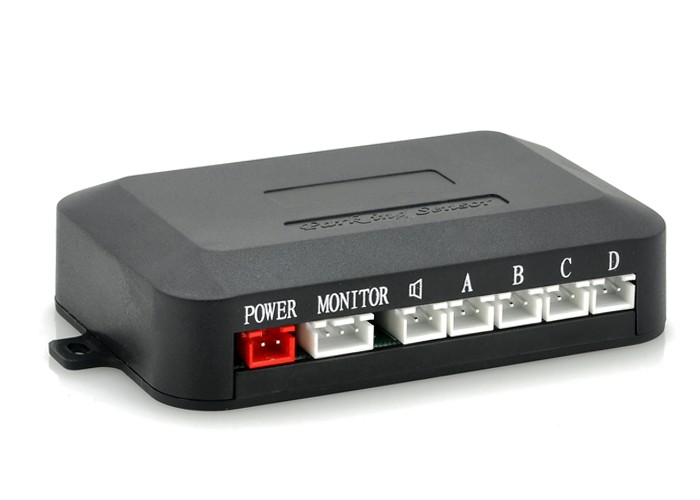

Ports
- Video IN (For Connecting Camera)
- Video OUT (For Connecting Camera and Sensor Information to LCD Screen)
- x4 Sensor IN
- 12V Power OUT (For Powering Camera)
- Speaker OUT
