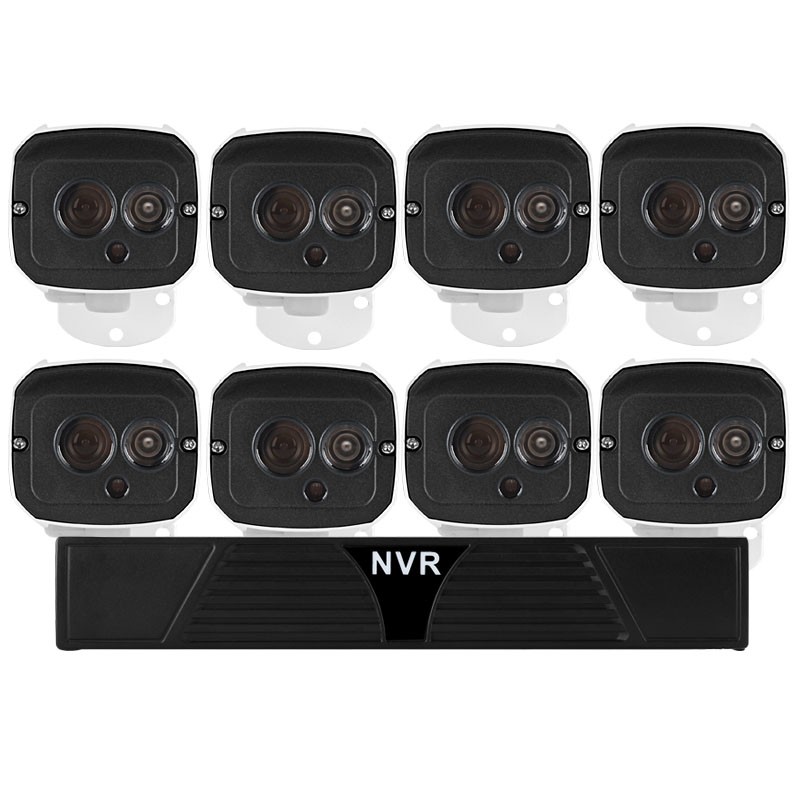

Durable 8 Channel HD NVR Outdoor Cameras
Product Dimensions: L 255 x W 216 x D 42 mm
8 Channel Network Video Recorder comes with 8 x Outdoor cameras which have a 60 degree viewing angle, 30 Meter IR night vision, motion detection and an ONVIF 2.0 compliant rating for great compatibility.
General Specification:
Mobile Phone Monitor: iPhone, Android Phones
Internet Browser: IE5.0, NET4.5, Firefox, Google Chrome
Supported OS: Win98 SE, ME, 2000, XP, Vista
ONVIF 2.0 Compliant

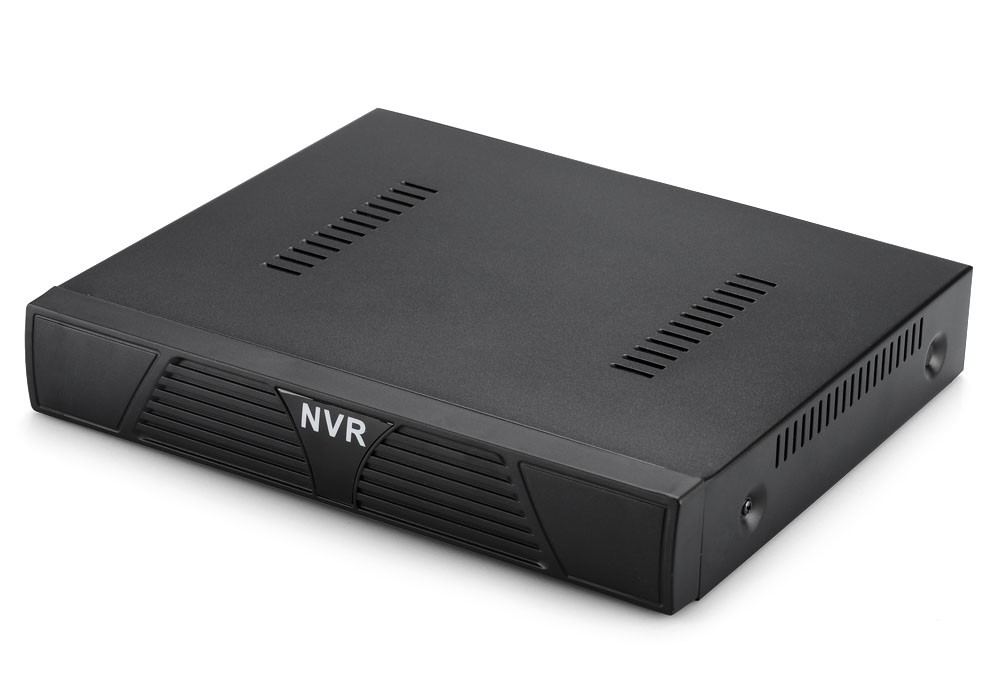

NVR
Operating System: Embedded LINUX operating system
Dual Stream: Each channel can set main stream and sub stream
Image Motion Detection: Each screen can set multiple detection areas and set sensitivity (IPC Support)
Recording Playback Quality: 4ch 720P playback in 8ch 720P mode; 1ch 1080P playback in 8ch 1080P mode
Recording Mode: Support manual, auto, dynamic detection, alarm trigger record
Backup Way: Support U Disk, USB mobile HDD,USB DVD-RW. network storage and backup
Local Login: User name and password
Recording Storage: Local HDD, network
Wireless Port: 3G, WIFI

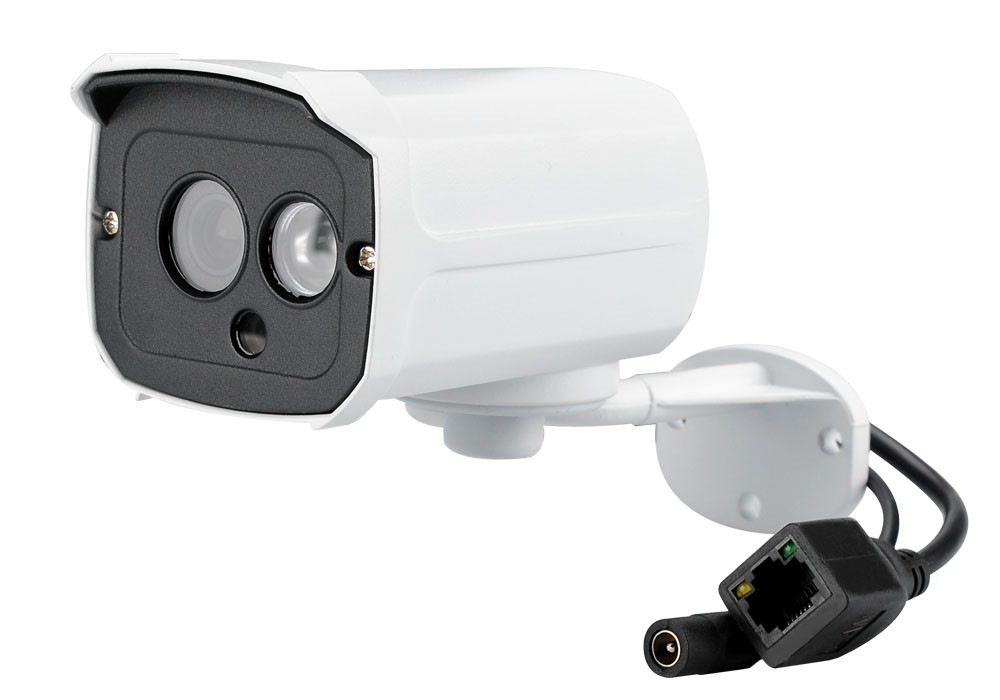

Video
High Resolution: 1MP (1280x720p 25FPS)
Sensor: 1/3 Inch CMOS Sensor

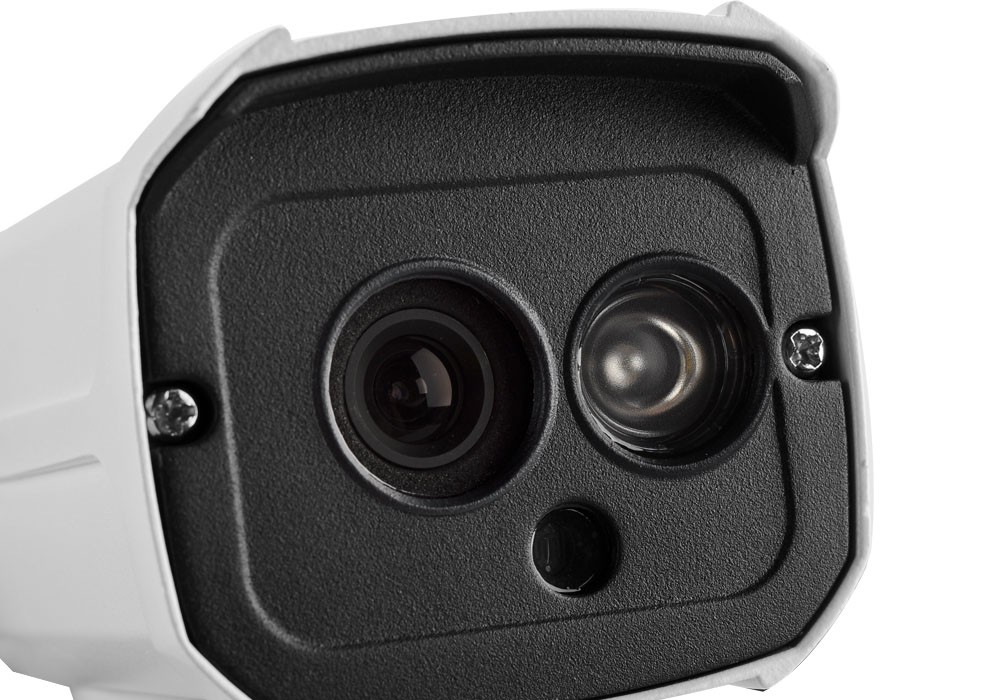

Lens: 3.6 mm lens, 60 Degrees
H.264 Compression
Real Time Transmission: Up to 25FPS (1280x960P 25FPS)
Interchangeable Lenses Available
Hardware motion detection support

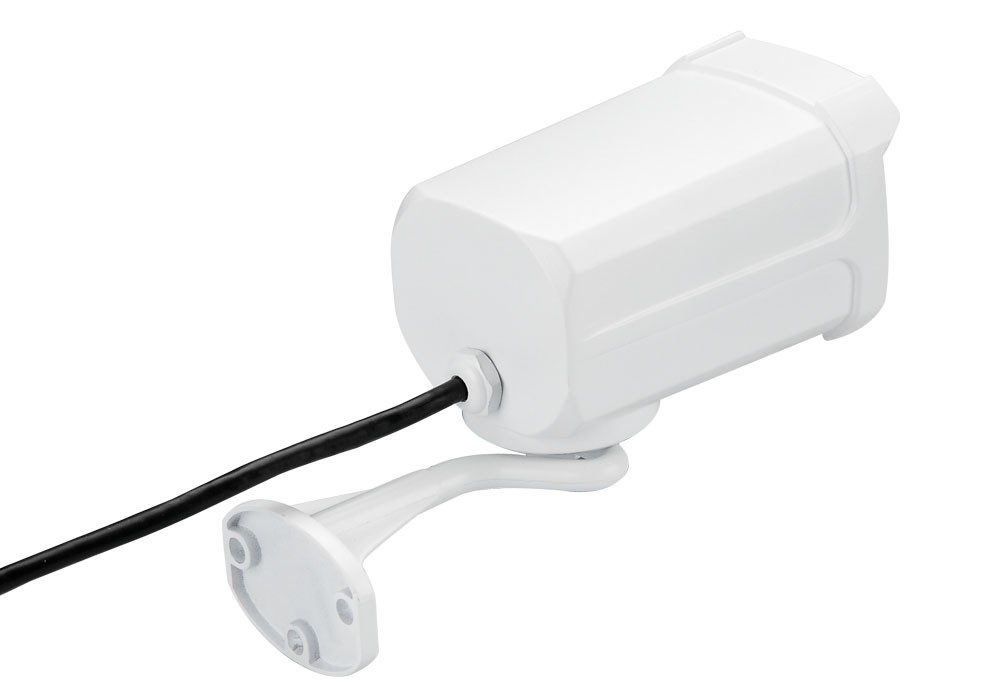

Wall mount support
Video Standard: 1080P(1920×1080)30fps, 960P(1280×960), 720P(1280×720)30fps
Monitoring Image Quality: 1080P(1920×1080), 960P(1280×960), 720P(1280×720)
Video Input: 8×(1280x720) IP camera, 4ch playback; 8×(1920x1080) IP camera, 1ch playback
MAX Capacity: Each port supports MAX 4TB
Audio
Audio Input: 4x Network audio input
Audio Output: 1x RCA auxiliary Output
Night Vision
Day and night application makes 30 Meters IR view
Others
Power Consumption: Up to 25W without HDD
Operating Temperature: -10 to 55 Degree Celsius
Operating Humidity: 10% to 90％
Ports
VGA
HDMI
LAN
2x USB
DV 12V
Language
Afrikaans, Bahasa Indonesia, Bahasa Melayu, German, Czech, Dansk, English, Spanish, Filipino, French, Italian, Magyar, Dutch, Portuguese (Brasil), Portuguese (Portugal), Vietnamese, Turkish, Greek, Russian, Hebrew, Arab, Thai, Korean, Chinese (Simp), Chinese (Trad), Japanese.
