Description
Details

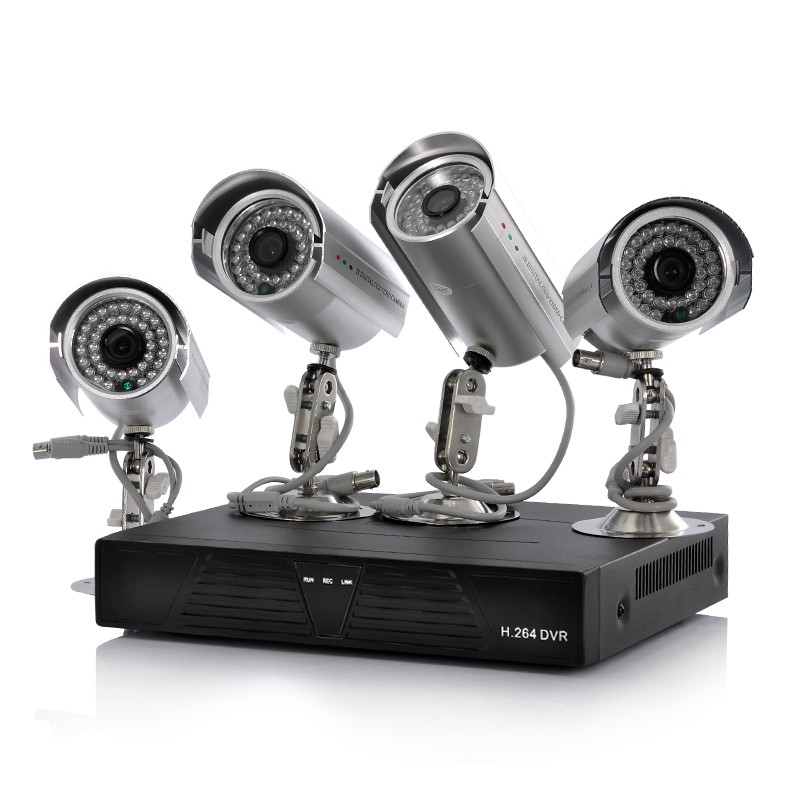

DVR 4 Camera Surveillance Kit
Dimensions
Camera dimensions: 130 x 80 x 80mm (L x W x D)
DVR Dimensions: 230 x 260 x 45mm (L x W x D)
Specifications

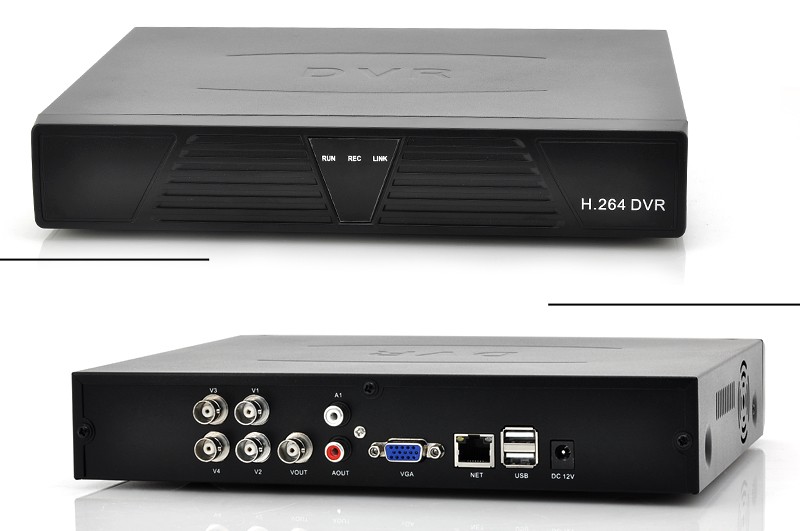

DVR
System Operating System: Embedded Linux (With Mouse)
Support Remote View with Mobile Phones: Based on Windows Mobile and Symbian S60, iPhone, iPad, Blackberry + Android Operating System
Control Mode: USB mouse
Video Input: 4CH BNC
Video Output: 1 CH BNC & 1 CH VGA
Audio Input: 1CH RCA
Audio Output: 1CH RCA
Display Split: 1/4
Live Resolution: D1 (PAL:704x576 NTSC:704x480)
Video/Audio Compression: H.264 / ADPCM
Video Detection + Alarm: Trigger Events MD (Motion Detection), Sensor triggered, Video loss, HDD Error and Full
Motion Detection
Zones: 396(22×18) Sensitivity Adjustable
Playback: 1CH to 4CH Playback Simultaneously
Search Mode: Time, Date, Event, Channel
Backup Mode: Network, USB, SATA Hard Disk Record Backup
Network Protocol: RJ45,10M/100M Self Adaptive Ethernet port; Support HTTP, SMTP, FTP,DDNS,PPOE network protocol
Remote Operation IE Control, CMS
HDD: pre-install 500G
Hard Disk: 1 SATA HDD Up to 3000GB
USB Interface: 2x USB2.0 Interface
RJ45: 1x for Network

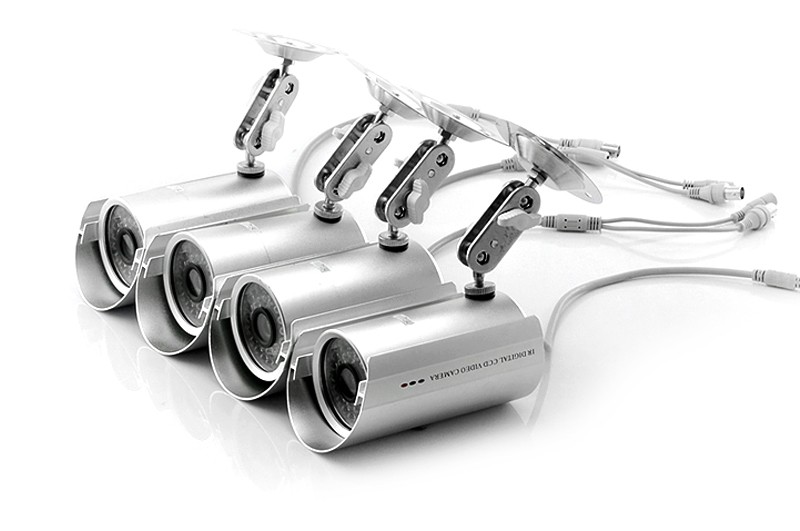

Camera
Image Sensors: 1/4 Inch CMOS (Weatherproof)
Infrared Sensors: 36 IR LED
Color System: PAL
Backlight Compensation: AUTO
White Balance: AUTO
Cable Length: 18 Meters
Minimum Illumination: 0 LUX
IR Distance: 10 Meters
Waterproof Rating: IP66
