Description
Details

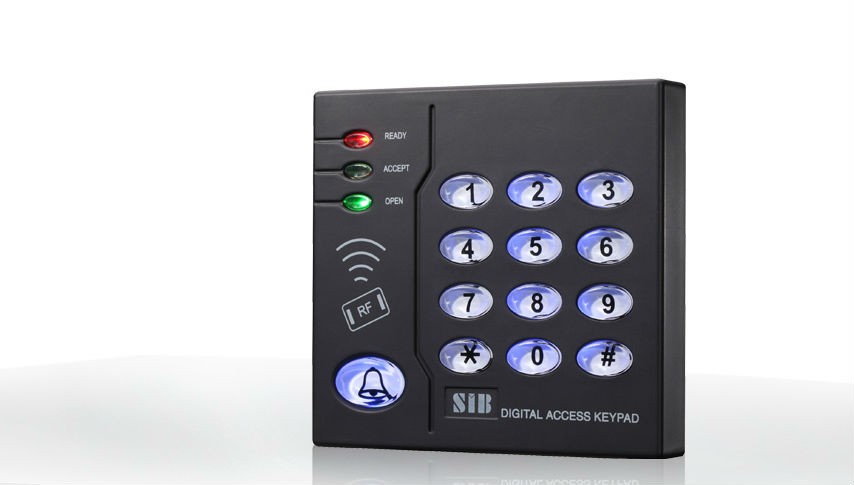

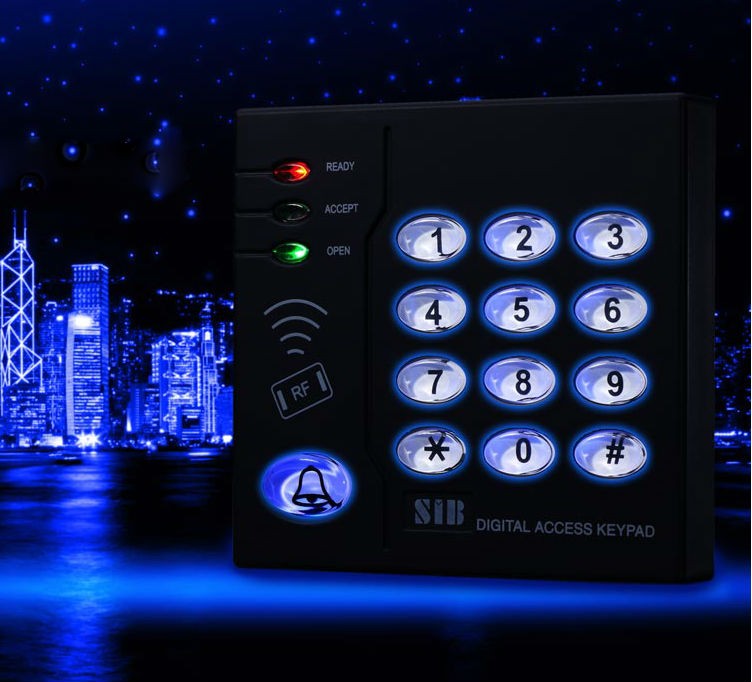

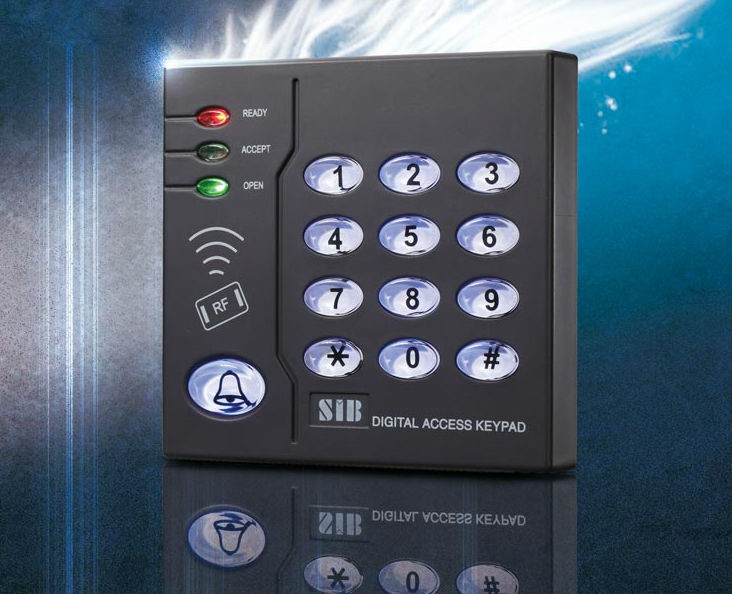

Standalone Keypad Access Control
Dimension：120 X 115 X 20mm
Description:
Night Backlit keys: Can operate keys in dark night
User capacity: 6500 users
Users modify password: Users can modify entering
codes by themselves
Fast arching speed:Time is less than 0.1 second from
Present card to door opening
Wiegand Input: Wiegand 26 input for the connection of an external reader
With doorbell Key: Can connect with any doorbell
Technical parameters：
Card type：EM
Capacity: 6500
Environment Humidity：10%～90%
Lock output：≤3A
Working voltage ：DC12V±10％
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：3～8cm
Ambient temperature：-35℃～60℃
Door Opening Time: 0～99s(Adjustable)

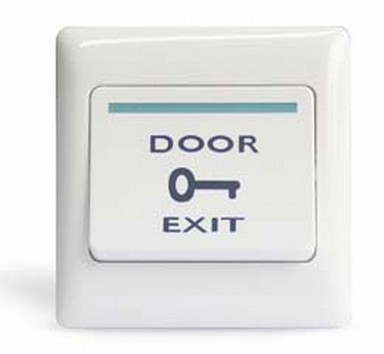

Unique Fireproof Material Door Release Button
Descriptions:
Dimensions: 86Lx86Wx20H(mm)
Standard Structure: Fireproof Material,
Mechanical Life: 500000 tested
Aptional Accessories: Concealing Box
Suitable for Door: Hollow Door
Operating temp: 10~ 55Degree(14-131F)
Operating Humidity: 0-95% (non- condensing)
Panel Material: Fireproof Material
Plastic Panel with Elegant Style
Tested to 100000 Cycles
Three Contact Output, Suitable for all kinds of the Locks
The Best Choice of Access Control.
