Description
Details

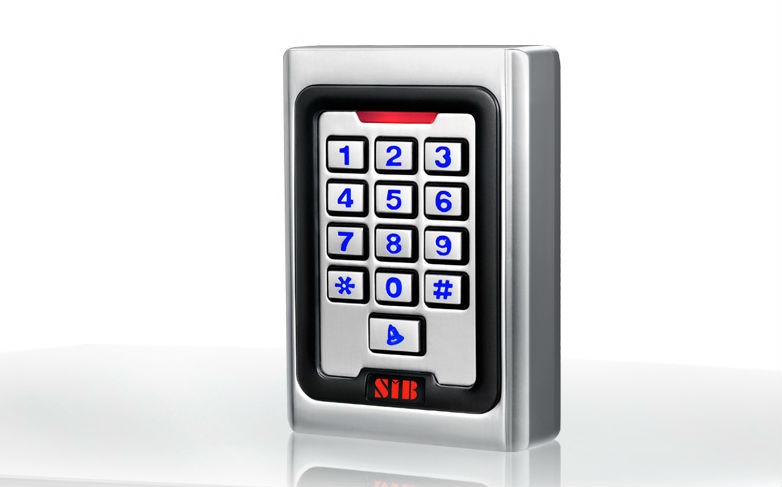

Stylish Standalone Access Control
Dimension：110 *80*25mm
Features:
Metal case, anti-vandal
Digital backlit keypad
Multi-function standalone access controller and reader, can
Be used as WG26 reader
Capacity: 2000 cards/ codes
Three accesses: card, pin, card+pin
WG interface: WG26 Input/output Doorbell support and interface: button and circuit segregate,
Any doorbell can be connected
Technical parameters：
Card type：EM
Capacity: 2,000
Environment Humidity：10%～90%
Lock output：≤3A
Working voltage： DC12V±10％
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：5～8cm
Ambient temperature：-45℃～60℃
Door Opening Time: 0～99s(Adjustable)

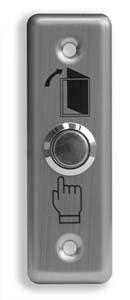

Door Release Button:
Dimensions: 90Lx30Wx24H(mm)
Standard Structure: Stainless steel Panel, Steel Button
Mechanical Life: 500000 tested
Suitable for Door: Hollow Door
Operating temp: 10～+55℃(14-131F)
Operating Humidity: 0-95% (non- condensing)
Panel Material: Stainless steel Panel, Wire Drawing Finished
Design with no Mechanical Bolt
Stainless steel Panel with Elegant Style
Tested to 500000 Cycles
Three Contact Output,Suitable for all kinds of the Locks
The Best Choice of Access Control
